ANDY AM/FM ASC 12/24V

- 40 channels AM / FM
- 12 / 24 V
- Up/down channel selector
- Volume adjustment and ON/OFF
- Manual squelch and ASC
- Multi-functions LCD display
- S-meter
- Public Address
- ANL filter , NB
- F function key
- Beep Function
- Roger Beep
- Mode switch AM / FM
- Preset programmable
- TOT (Time out timer)
- Front microphone plug
- External loudspeaker jack

Back light color:

Dimensions H x W x D (in mm) : 45 x 125 x 175
Weight : 0.9 kg

Included accessories :

1 microphone Electret and its hanger

1 mounting bracket with fixing screws

Description

Technical characteristics

- General

Channels	:	40
Modulation modes	:	AM / FM
Frequency ranges	:	from 26.965 MHz to 27.405 MHz
Antenna impedance	:	50 ohms
Power supply	:	13.2 V
Dimensions H x W x D (in mm)	:	45 x 125 x 175
Weight	:	0.9 kg
Accessories supplied	:	1 microphone Electret and its hanger 1 mounting bracket with fixing screws

- Transmission

Frequency allowance	:	+/- 200 Hz
Carrier power	:	4 W AM / 4 W FM
Transmission interference	:	inferior to 4 nW (- 54 dBm)
Audio response	:	300 Hz to 3 kHz
Emitted power in the adj. channel	:	inferior to 20 µW
Microphone sensitivity	:	7 mV
Drain	:	1.7 A (with modulation)
Modulated signal distortion	:	2 %

- Reception

Maxi. sensitivity at 20 dB sinad	:	0,5 µV - 113 dBm AM / 0,35 µV - 116 dBm FM
Frequency response	:	300 Hz to 3 kHz
Adjacent channel selectivity	:	60 dB
Maximum audio power	:	3 W
Squelch sensitivity	:	mini 0.2 μV - 120 dBm maxi 1 mV - 47 dBm
Frequency image rejection rate	:	60 dB
Intermediate frequency rej. rate	:	70 dB
Drain	:	180 ~ 500 mA (13,2 V) 100 ~ 300 mA (26,4 V)

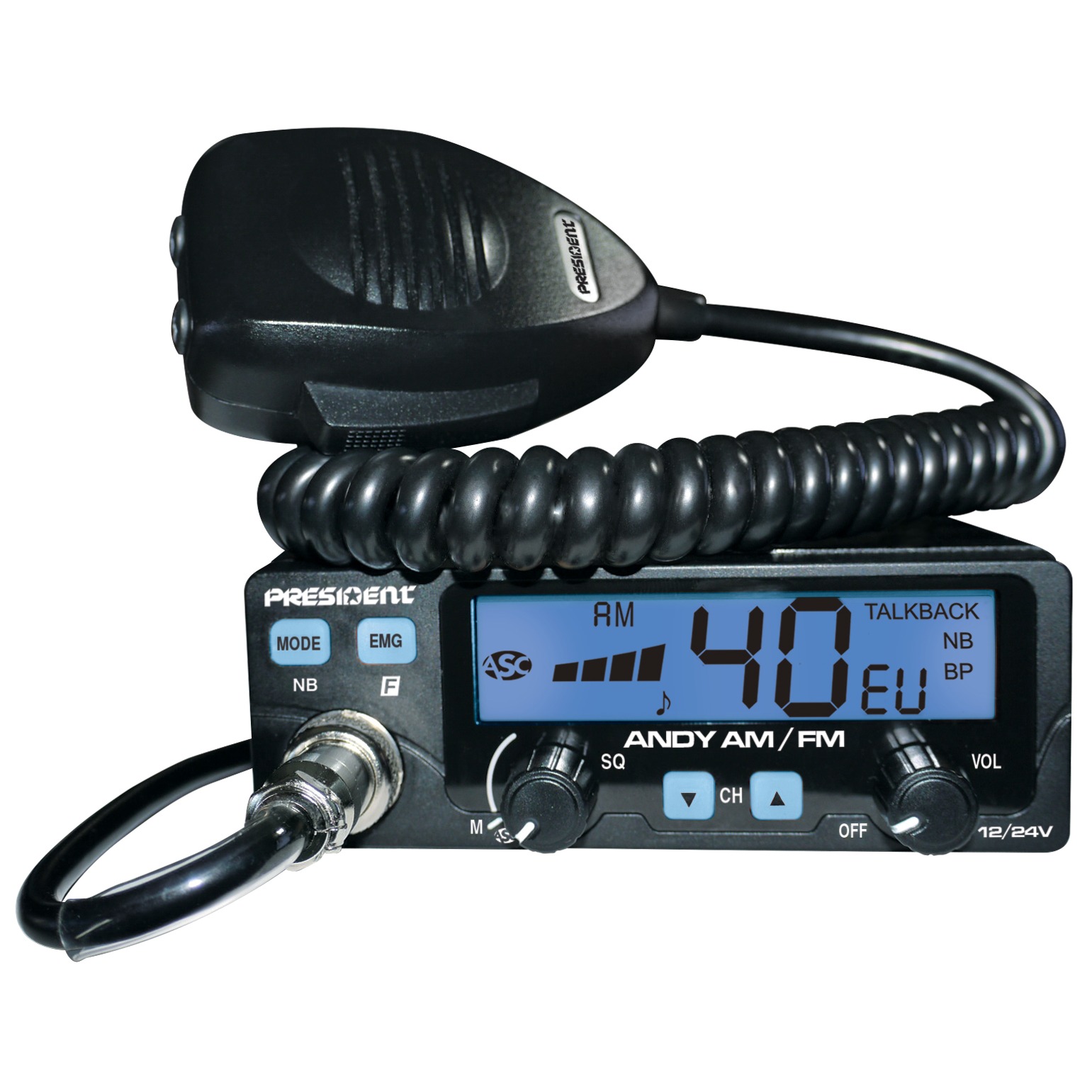

Photos

1541px x 1541px
252.81 KB

1541px x 1541px
251.39 KB

1541px x 1541px
250.63 KB
